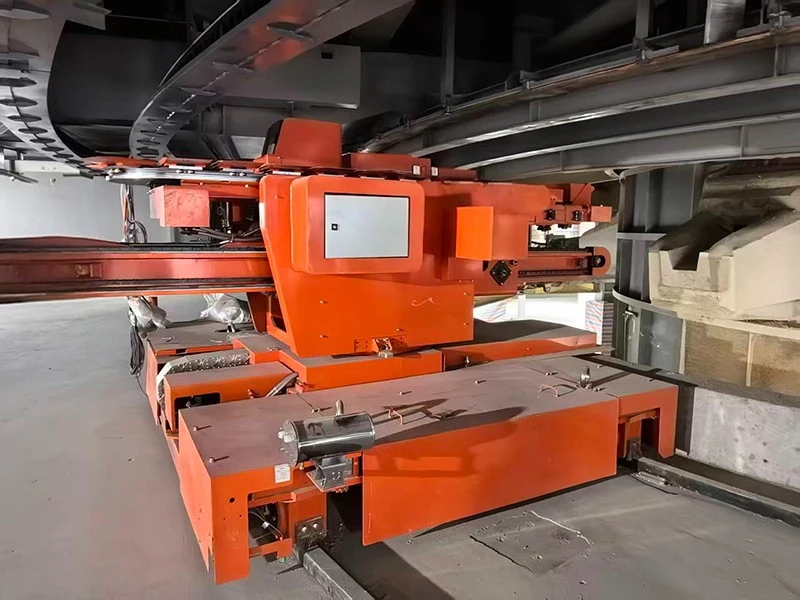

Tap Hole Opening and Plugging Machine (Tapping Robot)

1. Product Description

The tap hole opening and plugging machine (tapping robot) is an important equipment used in submerged arc furnaces, specifically designed for opening and plugging the tap hole (furnace taphole). During the production process of a submerged arc furnace, when tapping is required, the machine opens the tap hole to discharge molten metal. After tapping is completed, the machine uses a mud gun to inject refractory clay (a type of refractory material) into the tap hole, thereby sealing it. This process requires precise control and sufficient pressure to ensure tight and stable sealing, preventing high-temperature molten metal inside the furnace from continuing to flow out.

The ferrosilicon tapping robot produced by our company is equipped with functions such as tap hole opening, drill rod handling, and tap hole plugging. The tapping operator remotely controls the console to command the robot to automatically perform tool pickup/placement, tap hole opening, drill rod operation, and tap hole plugging tasks.

Its specific advantages include:

(1) Ensuring Safe Production
The use of the tap hole plugging machine reduces the risks associated with manual operation and improves production safety. It can quickly and effectively seal the tap hole, preventing accidents caused by delayed or inadequate sealing.

(2) Improving Production Efficiency
Automated tap hole opening and plugging operations significantly reduce the time required for sealing the tap hole, thereby improving the efficiency of the overall production process. In addition, the machine can precisely control the amount and pressure of the plugging material, reducing material waste and further enhancing production efficiency.

(3) Reducing Labor Intensity
Replacing manual tap hole plugging operations with a tap hole opening and plugging machine greatly reduces workers' labor intensity and improves working conditions. This is highly important for protecting employee health and improving job satisfaction.

2. Features & Advantages

• Remote-controlled operation, simple and easy to use;
• High efficiency and high success rate in tap hole opening and plugging;
• Stable performance, durable, and resistant to harsh operating conditions;
• Improves the smelting efficiency of submerged arc furnaces;
• Low maintenance cost and easy maintenance.

1. Packaging, Logistics & Delivery

International Export Packaging Standards

2. Installation & Commissioning

Technical personnel can be dispatched overseas for installation and adjustment, or on-site installation and commissioning guidance can be provided.

3. Operation Training

Technical guidance and technical training services are available.

4. Maintenance & Repair

Long-term equipment maintenance and technical support can be provided.

5. Spare Parts Support

Long-term spare parts supply is available.
