Product Introduction
1. Product Description

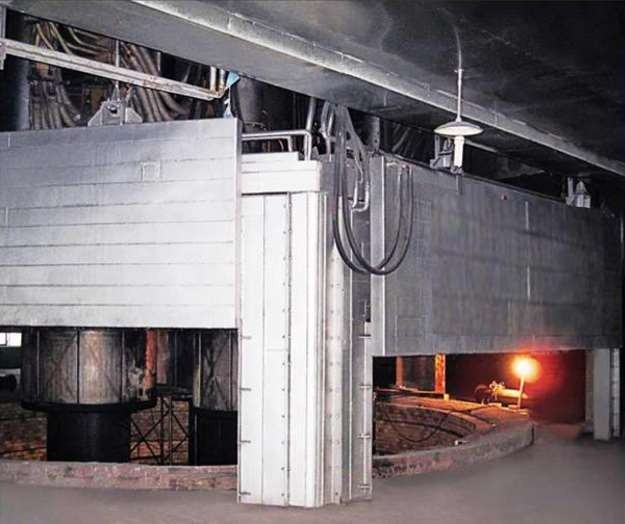

The electric furnace is a semi-closed submerged arc furnace adopting a semi-closed furnace fume hood structure. During semi-closed furnace operation, the amount of air entering through the operation openings is sufficient to completely combust the CO gas contained in the furnace gas. In order to reduce eddy current losses caused by electromagnetic induction, the top cover plate of the fume hood is welded from low-magnetic steel plates, while the side walls, frame, and furnace doors are welded from carbon steel materials. The fume hood is equipped with feed pipe insertion openings and flue gas duct inlets.

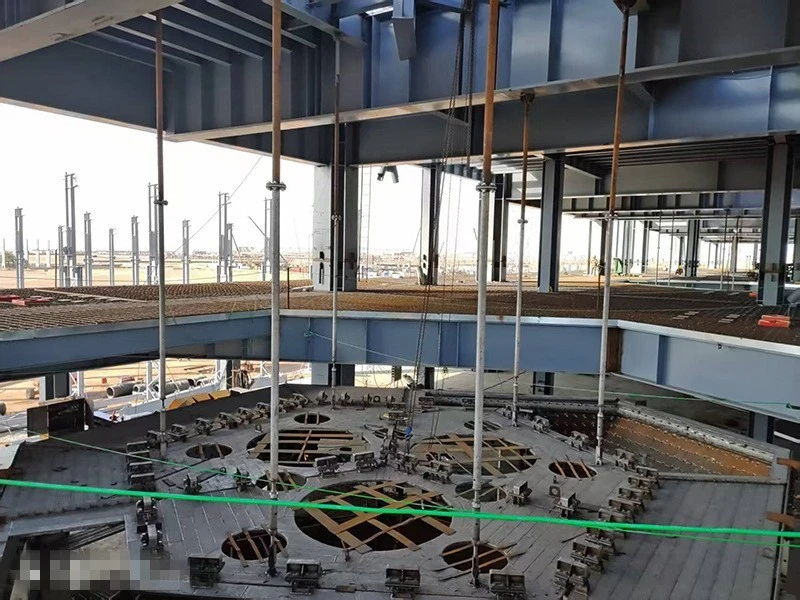

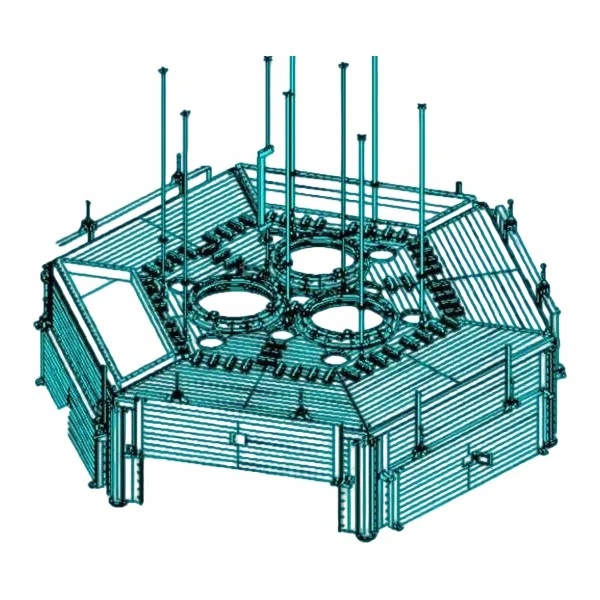

The furnace cover adopts a suspended and combined water-cooled panel structure. The fume hood is hexagonal in shape, with six large side doors. The furnace cover is provided with feed pipe openings and flue duct connections, while the sides are equipped with lifting doors and observation doors. The top cover plate, frame, and side walls of the furnace cover are water-cooled structures.
Features & Advantages
Functions include smoke storage, pressure equalization, sedimentation, and gas flow guidance.
Product Specifications
Non-standard equipment. Equipment can be designed and supplied according to client requirements.
Optional Customization Items: design, material, size, etc.
Equipment design and supply can be carried out according to customer requirements.
Material
06Cr18Ni11Ti steel plate and Q245R steel plate
Appearance
The furnace cover adopts a suspended and combined water-cooled panel structure. The furnace cover is provided with feed pipe openings and flue duct connections, while the sides are equipped with lifting doors and observation doors. The top cover plate, frame, and side walls are water-cooled structures.
Design
Equipment design and supply can be carried out according to customer requirements.
Quality Control
After completion of the design, fully automated laser cutting of raw materials, machining, assembly welding, pre-assembly, and multi-level production quality inspections are carried out.
A "7 inspections and 1 certificate" management system is adopted, including incoming raw material inspection, machined component inspection, welding process inspection, ultrasonic flaw detection, pre-assembly inspection, pressure testing, export packaging inspection, and issuance of a product qualification certificate after completion of all inspections.
Certified in accordance with the Quality Management System (CQC) GB/T19001-2016 / ISO9001:2015, Occupational Health and Safety Management System (CQC) GB/T45001-2020 / ISO45001:2008, Environmental Management System (CQC) GB/T24001-2016 / ISO14001:2015, and EU CE certification.
After-sales Service
1. Packaging, Logistics & Delivery
International Export Packaging Standards
2. Installation & Commissioning
Technical installation personnel can be dispatched overseas for installation and adjustment, and on-site installation and commissioning guidance can also be provided.
3. Operation Training
Technical guidance and technical training services are available.
4. Maintenance & Repair
Long-term equipment maintenance and technical guidance can be provided.
5. Spare Parts Support
Long-term supply of equipment spare parts is available.
