Product Introduction
1. Product Description
The lining of a silicon metal electric furnace is the inner lining of the submerged arc furnace body. It is mainly composed of insulation materials, refractory materials, and carbon materials, and is used to resist and prevent heat loss from the high-temperature furnace chamber. It ensures the safe and stable progress of electro thermal reactions inside the furnace and is also an important guarantee for low energy consumption and high production efficiency. Therefore, the furnace lining is a critical component of industrial silicon electric smelting equipment.
This furnace lining has the following advantages:
1. Mature technology, safe and reliable operation.
2. The heat-insulating furnace lining provides better energy-saving performance than condensation-type or air-cooled furnace linings.
3. The composite corundum bricks and microporous carbon bricks used in this lining configuration can withstand harsh smelting conditions caused by intensified or overload smelting operations, offering a longer service life than traditional lining configurations.
4. The carbon materials in the high-temperature furnace hearth area are constructed using a seamless tight-joint masonry method. Under rapid heating and cooling conditions during thermal loading, the joints are smaller than those of traditional wide-joint masonry, effectively resisting the penetration of high-temperature molten silicon and silicon vapor, thereby extending the service life of the furnace lining.
The tap hole and surrounding areas are treated with special high-temperature-resistant, anti-oxidation, and anti-leakage technologies, effectively improving the operational safety and service life of this vulnerable section of the furnace.
Features & Advantages
High wear resistance and corrosion resistance, high temperature resistance, and high structural strength.
Product Specifications
Non-standard equipment; equipment design and supply can be carried out according to customer requirements.
Optional Customization Items: design, material, size, etc.
Equipment design and supply can be carried out according to customer requirements.
Design
Equipment design and supply can be carried out according to customer requirements.
Appearance

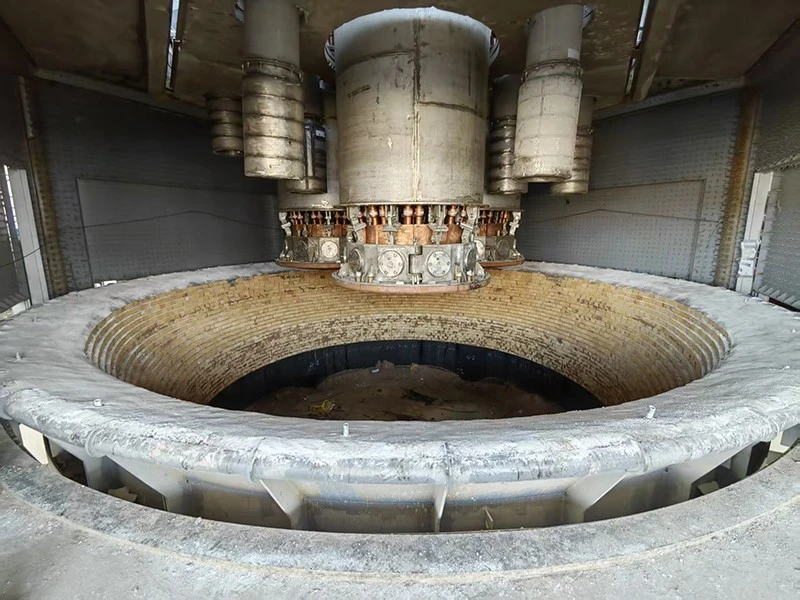

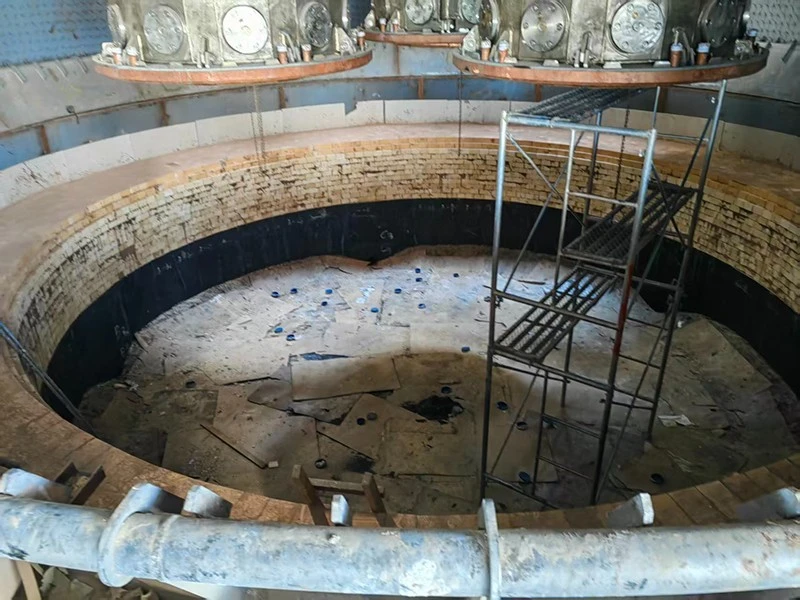

See photos.
Quality Control
Certified in accordance with:
Quality Management System: CQC GB/T19001-2016 / ISO9001:2015
Occupational Health and Safety Management System: CQC GB/T45001-2020 / ISO45001:2008
Environmental Management System: CQC GB/T24001-2016 / ISO14001:2015
EU CE Certification.
After-sales Service
1. Packaging, Logistics & Delivery
International Export Packaging Standards
2. Installation & Commissioning
Technical personnel can be dispatched overseas for installation and adjustment, or on-site installation and commissioning guidance can be provided.
3. Operation Training
Technical guidance and technical training services are available.
4. Maintenance & Repair
Long-term equipment maintenance and technical support can be provided.
5. Spare Parts Support
Long-term spare parts supply is available.
