Product Introduction

1. Product Description

35kV high voltage switch cabinet adopts KYN61-40.5 type armored removable AC metal closed switch cabinet, equipped with China domestic high-quality vacuum circuit breaker, electric spring operating mechanism, and also equipped with distributed microcomputer protection monitoring device.

(1) The main technical parameters of 35kV high voltage switch cabinet are as follows:
- Rated voltage: AC 40.5kV;
- Current rating: 1250～2000A (selected as needed);
- 3S (4S) rated thermally stable current: 31.5kA;
- Rated short circuit turn-off current (peak): 80kA (based on the actual calculation results);
- Rated frequency: 50Hz;
- Rated power frequency withstand voltage (1min): 95kV;
- Rated lightning impulse withstand voltage: 185kV;
- Operating mechanism and operating voltage: spring energy storage, DC220V;
- Protection level: IP42.

(2) Distributed microcomputer protection monitoring device
The protection device of 35kV equipment selects the distributed microcomputer protection monitoring system successfully used in China for telemetry, remote signaling and remote control of the current, voltage, power, power factor, accident tripping signal, accident warning signal and circuit breaker tripping operation and position signal of 35kV switch station. And it is equipped with communication interface.

2. Features & Advantages

(1) Structural Design: Adopts a three-section layout consisting of upper busbars, a middle withdrawable unit, and lower cables, offering advantages such as clear isolation, safe maintenance, and convenient operation.

(2) Safety Performance: Equipped with comprehensive protection mechanisms that effectively prevent faults such as overload and short circuit, greatly improving the safety of the power system.

(3) Intelligent Monitoring: Features an intelligent monitoring system capable of real-time operation status monitoring, timely detection and handling of potential issues, and ensuring the continuity and stability of power supply.

(4) Heat Dissipation Design: The highly efficient heat dissipation design enables the equipment to maintain stable operating performance even in high-temperature environments.

Product Specifications

Non-standard equipment; equipment design and supply can be carried out according to customer requirements.

Optional Customization Items: design, material, size, etc.

Equipment design and supply can be carried out according to customer requirements.

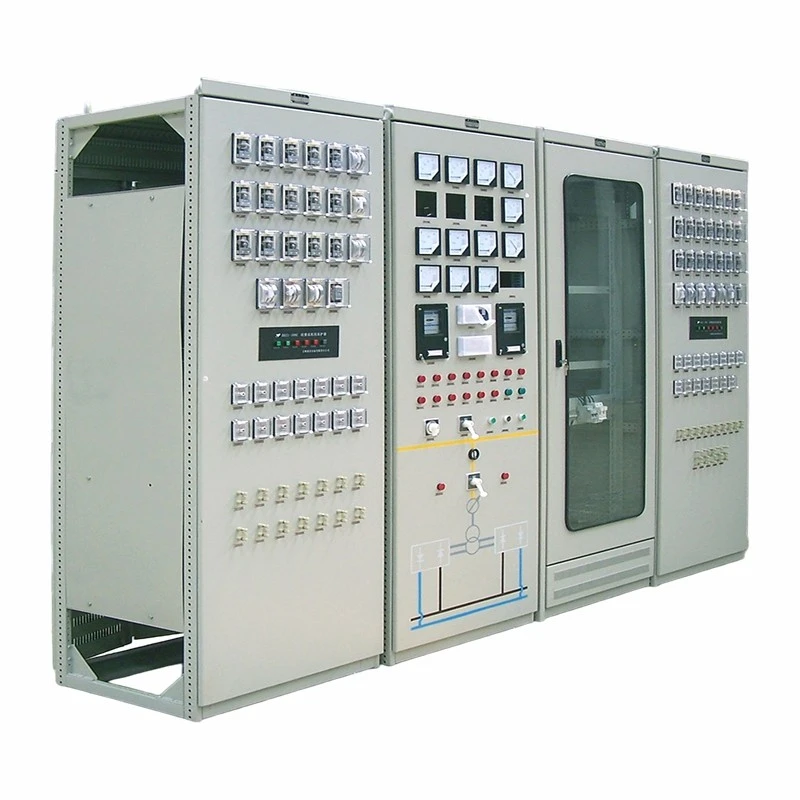

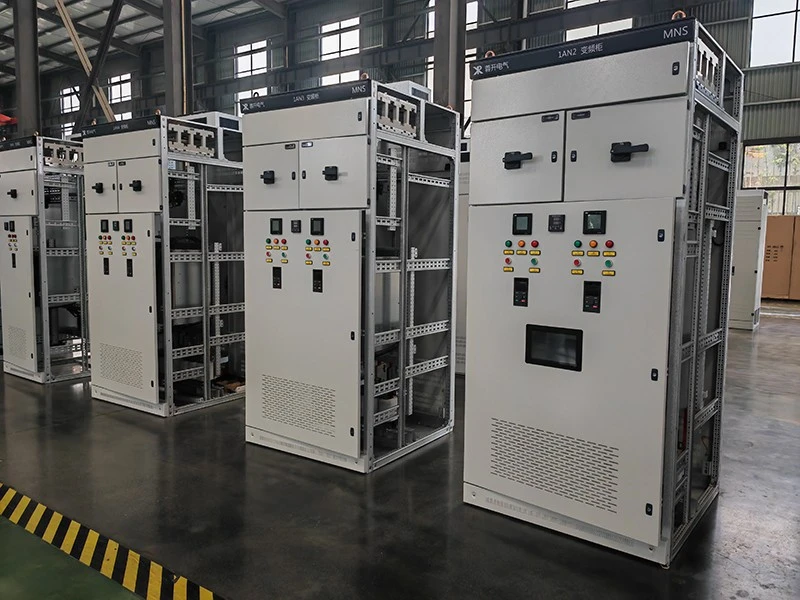

Appearance

See photos.

Design

Equipment design and supply can be carried out according to customer requirements.
