Product Introduction

1. Product Description

The main function of the air injection system is to serve as a gas sealing device for the feed pipe and furnace hood system. The system consists of pipelines and fans. The fan draws air from the tapping smoke extraction system and delivers it into the gas sealing device through the system pipelines.

Features & Advantages

Excellent sealing performance, prevents smoke and gas leakage, stable operation.

Product Specifications

Non-standard equipment; equipment design and supply can be carried out according to customer requirements.

Optional Customization Items: design, material, size, etc.

Equipment design and supply can be carried out according to customer requirements.

Material

Material: Q235B steel, variable frequency fan (VFD fan).

Appearance

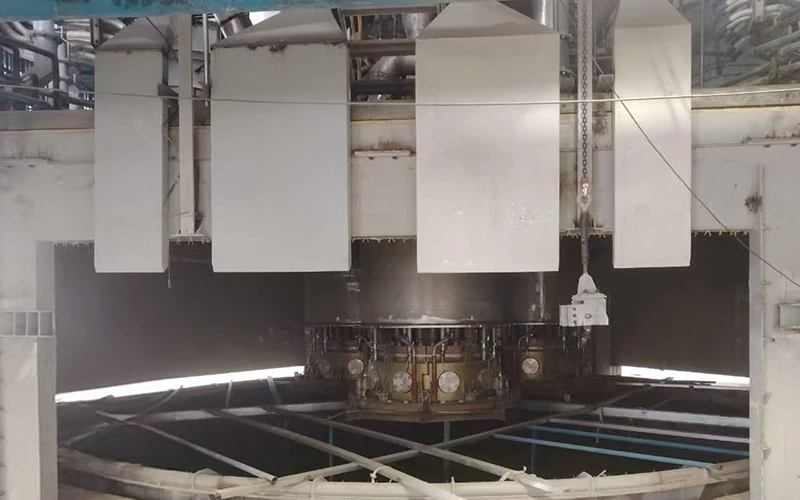

See photos.

Design

Equipment design and supply can be carried out according to customer requirements.

Quality Control

1. Production Process

After the design is completed, the production process includes: fully automatic laser cutting of raw materials, machining, assembly and welding, pre-assembly, and multi-level production quality inspections.

2. Quality Control

A "7 inspections + 1 certification" quality management system is adopted, including: incoming raw material inspection, machined component inspection, welding process inspection, ultrasonic flaw detection, pre-assembly inspection, pressure testing, export packaging inspection. After completion of all inspections, a product quality certificate is issued.

3. Product Certifications

Certified in accordance with:

Quality Management System: CQC GB/T19001-2016 / ISO9001:2015

Occupational Health and Safety Management System: CQC GB/T45001-2020 / ISO45001:2008

Environmental Management System: CQC GB/T24001-2016 / ISO14001:2015

EU CE Certification.
