Product Introduction
1. Product Description
The high-voltage power supply of the electric furnace adopts three single-phase furnace transformers arranged in a delta configuration with a 120° phase difference. The high-voltage side of the furnace transformers is remotely controlled from the furnace operation platform, allowing switching operations and status indication of the electric furnace.
High-voltage protection action signals and warning signals are connected to the computer control system, where alarms are displayed on the workstation interface.
Submerged arc furnace transformers mainly consist of the following six parts: iron core, transformer body, windings, main assembly, oil tank, accessories.
Features & Advantages
Flexible voltage conversion, high-current output, high efficiency and energy saving, safe and reliable operation.
Product Specifications
Non-standard equipment; equipment design and supply can be carried out according to customer requirements.
Optional Customization Items: design, material, size, etc.
Equipment design and supply can be carried out according to customer requirements.
Appearance

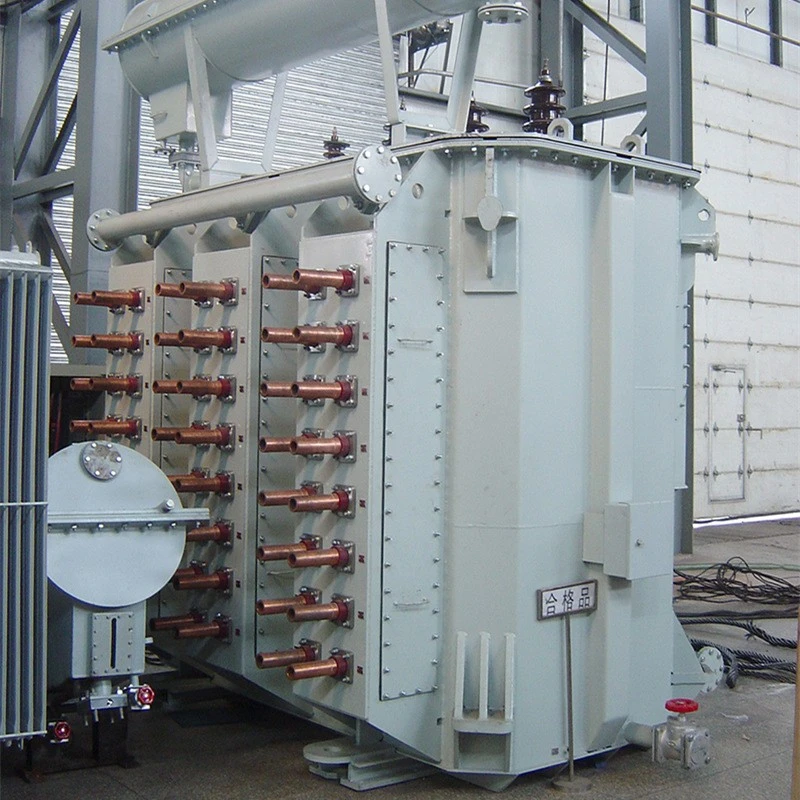

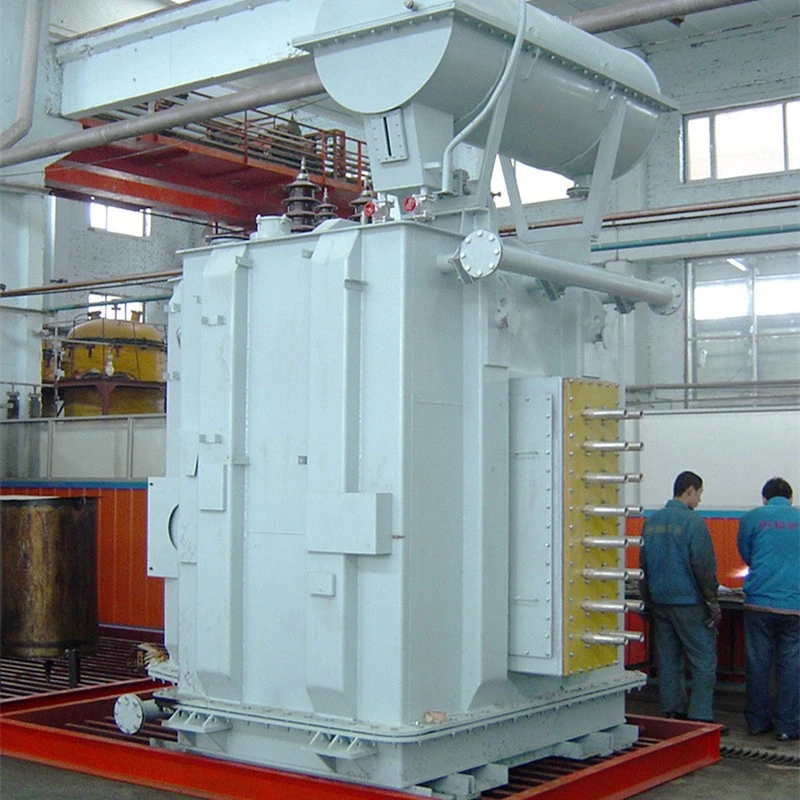

See photos.
Design
Equipment design and supply can be carried out according to customer requirements.
Quality Control
After the design is completed, the production process includes: fully automatic laser cutting of raw materials, machining, assembly and welding, pre-assembly, and multi-level production quality inspections.
A "7 inspections + 1 certification" quality management system is adopted, including: incoming raw material inspection, machined component inspection, welding process inspection, ultrasonic flaw detection, pre-assembly inspection, pressure testing, export packaging inspection. After completion of all inspections, a product quality certificate is issued.
Certified in accordance with:
Quality Management System: CQC GB/T19001-2016 / ISO9001:2015
Occupational Health and Safety Management System: CQC GB/T45001-2020 / ISO45001:2008
Environmental Management System: CQC GB/T24001-2016 / ISO14001:2015
EU CE Certification.
After-sales Service
1. Packaging, Logistics & Delivery
International Export Packaging Standards
2. Installation & Commissioning
Technical personnel can be dispatched overseas for installation and adjustment, or on-site installation and commissioning guidance can be provided.
3. Operation Training
Technical guidance and technical training services are available.
4. Maintenance & Repair
Long-term equipment maintenance and technical support can be provided.
5. Spare Parts Support
Long-term spare parts supply is available.
