Product Introduction
1. Product Description
Function: It provides hydraulic power for the electrode system, furnace hood, and related equipment.
Main Components:
The hydraulic system consists of: hydraulic pump station (including accumulator unit), electrode control valve stations (three sets), hydraulic slide gate valves, bell valves, furnace door lifting control valve station.
Each electric furnace is equipped with two hydraulic systems: hydraulic system No.1 is used for the electrode bellows pressure ring system, with water-glycol as the hydraulic medium.
Hydraulic System No.2 is used for electrode lifting, electrode slipping, upper and lower electrode holding brakes, hydraulic slide gate valves, furnace door lifting, and bell valves, with No.46 anti-wear hydraulic oil as the hydraulic medium.
Features & Advantages
High efficiency and high force output, precise control and high accuracy, long service life and low maintenance cost.
Product Specifications
Non-standard equipment; equipment design and supply can be carried out according to customer requirements.
Optional Customization Items: design, material, size, etc.
Equipment design and supply can be carried out according to customer requirements.
Material
Hydraulic station oil tank material: stainless steel.
Hydraulic medium: water-glycol or hydraulic oil.
Appearance

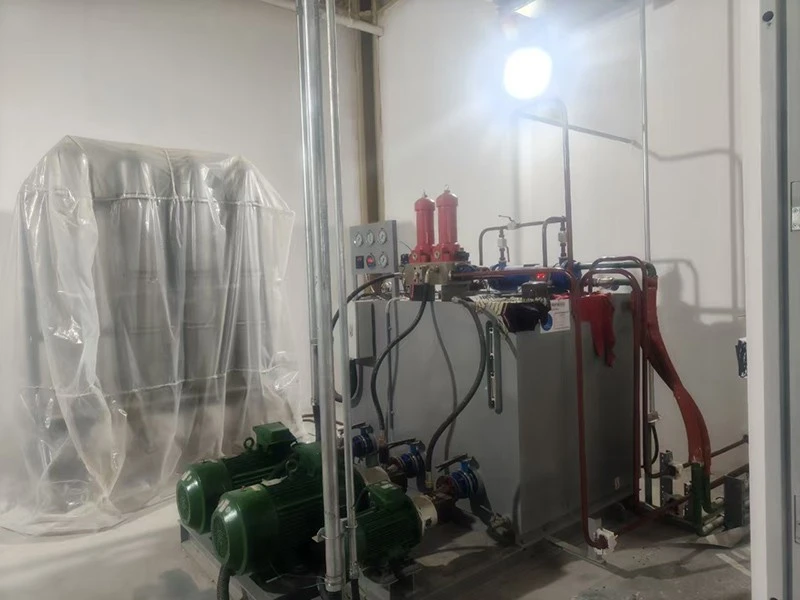

See photos.
Design
Equipment design and supply can be carried out according to customer requirements.
Quality Control
After the design is completed, the production process includes: fully automatic laser cutting of raw materials, machining, assembly and welding, pre-assembly, and multi-level production quality inspections.
A "7 inspections + 1 certification" quality management system is adopted, including: incoming raw material inspection, machined component inspection, welding process inspection, ultrasonic flaw detection, pre-assembly inspection, pressure testing, export packaging inspection. After completion of all inspections, a product quality certificate is issued.
Certified in accordance with:
Quality Management System: CQC GB/T19001-2016 / ISO9001:2015
Occupational Health and Safety Management System: CQC GB/T45001-2020 / ISO45001:2008
Environmental Management System: CQC GB/T24001-2016 / ISO14001:2015
EU CE Certification.
After-sales Service
1. Packaging, Logistics & Delivery
International Export Packaging Standards
2. Installation & Commissioning
Technical personnel can be dispatched overseas for installation and adjustment, or on-site installation and commissioning guidance can be provided.
3. Operation Training
Technical guidance and technical training services are available.
4. Maintenance & Repair
Long-term equipment maintenance and technical support can be provided.
5. Spare Parts Support
Long-term spare parts supply is available.
