Product Introduction

1. Product Description

The main function of a casting ingot mold is to receive molten metal and allow it to solidify into ingots within a mold or container. In addition, different types of casting ingot molds have specific functions, such as increasing the cooling rate, reducing the lower-limit defect rate of finished products, and minimizing cracks.

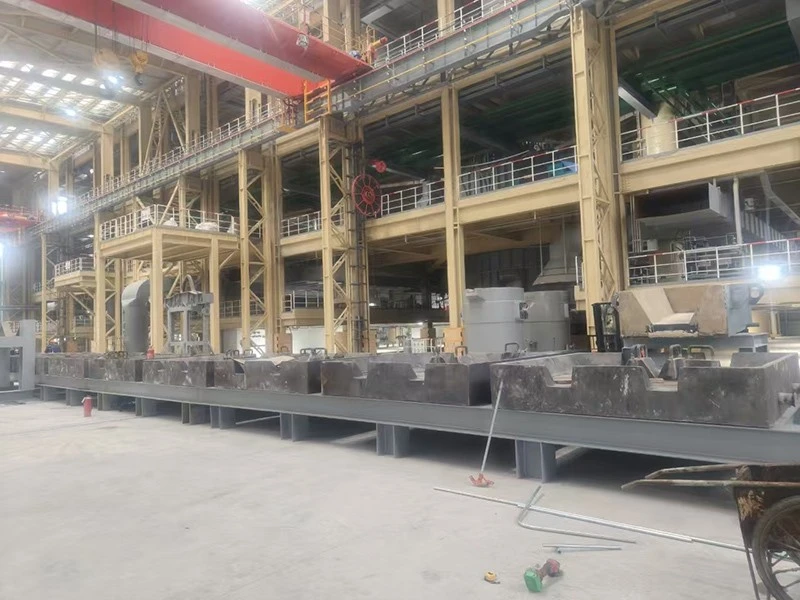

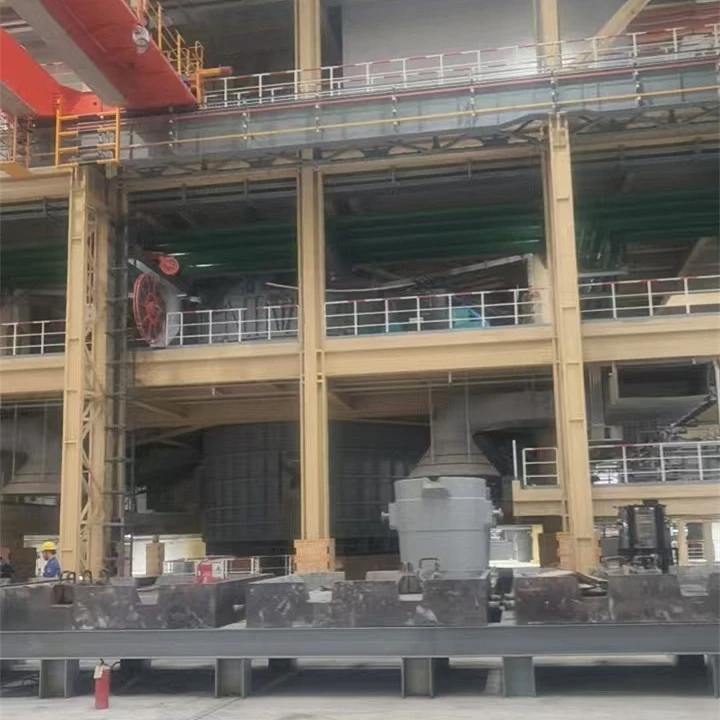

For ferrosilicon electric furnaces, each electric furnace is equipped with four rows of ingot molds. Each row consists of a head mold, intermediate ingot molds, and a tail mold. The ingot molds are installed on the floor of the casting workshop through supporting frames, and refractory bricks are arranged on the supports.

Features & Advantages

Rapid cooling, high automation and reliability, suitable for various alloy casting applications, environmentally friendly design.

Product Specifications

Non-standard equipment; equipment design and supply can be carried out according to customer requirements.

Optional Customization Items: design, material, size, etc.

Equipment design and supply can be carried out according to customer requirements.

Material

Ingot mold material: HT200, support frame material: Q235B.

Appearance

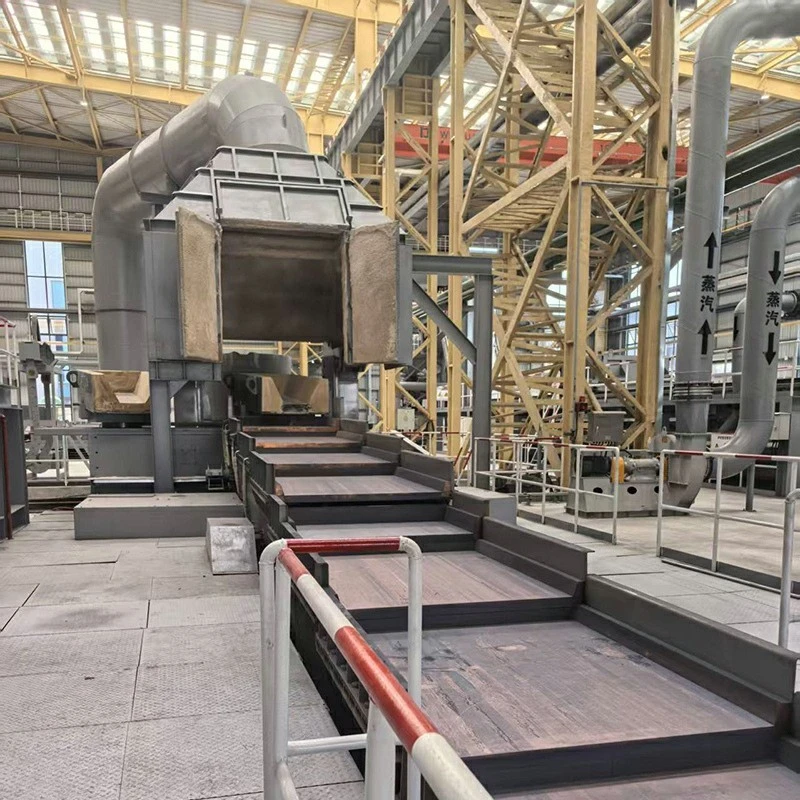

See photos.

Design

Equipment design and supply can be carried out according to customer requirements.

Quality Control

1. Production Process

After the design is completed, the production process includes: fully automatic laser cutting of raw materials, machining, assembly and welding, pre-assembly, and multi-level production quality inspections.

2. Quality Control

A "7 inspections + 1 certification" quality management system is adopted, including: incoming raw material inspection, machined component inspection, welding process inspection, ultrasonic flaw detection, pre-assembly inspection, pressure testing, export packaging inspection. After completion of all inspections, a product quality certificate is issued.

3. Product Certifications

Certified in accordance with:

Quality Management System: CQC GB/T19001-2016 / ISO9001:2015

Occupational Health and Safety Management System: CQC GB/T45001-2020 / ISO45001:2008

Environmental Management System: CQC GB/T24001-2016 / ISO14001:2015

EU CE Certification.
