Product Introduction
1. Product Description

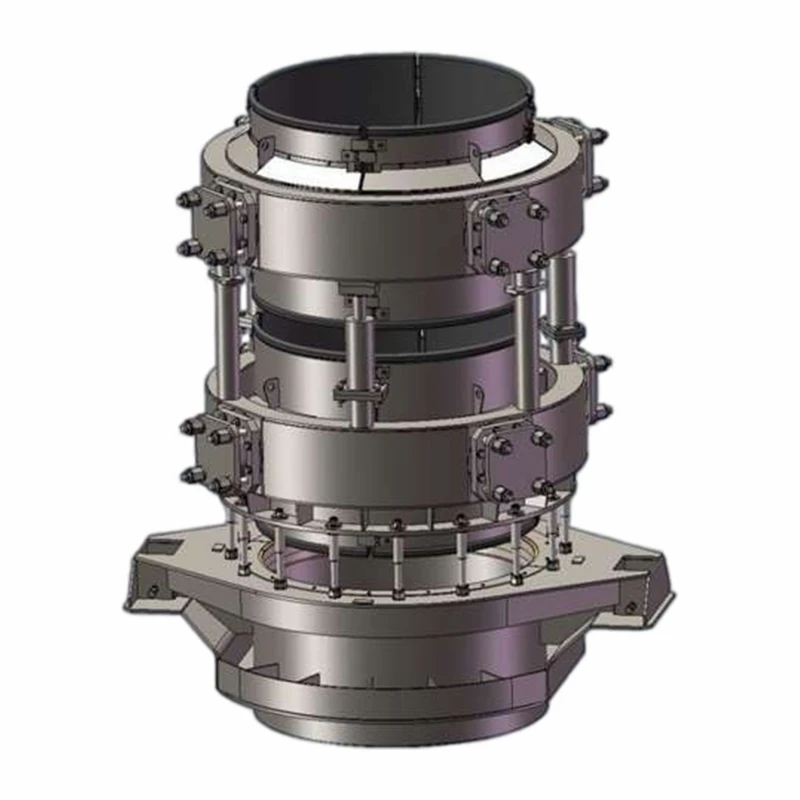

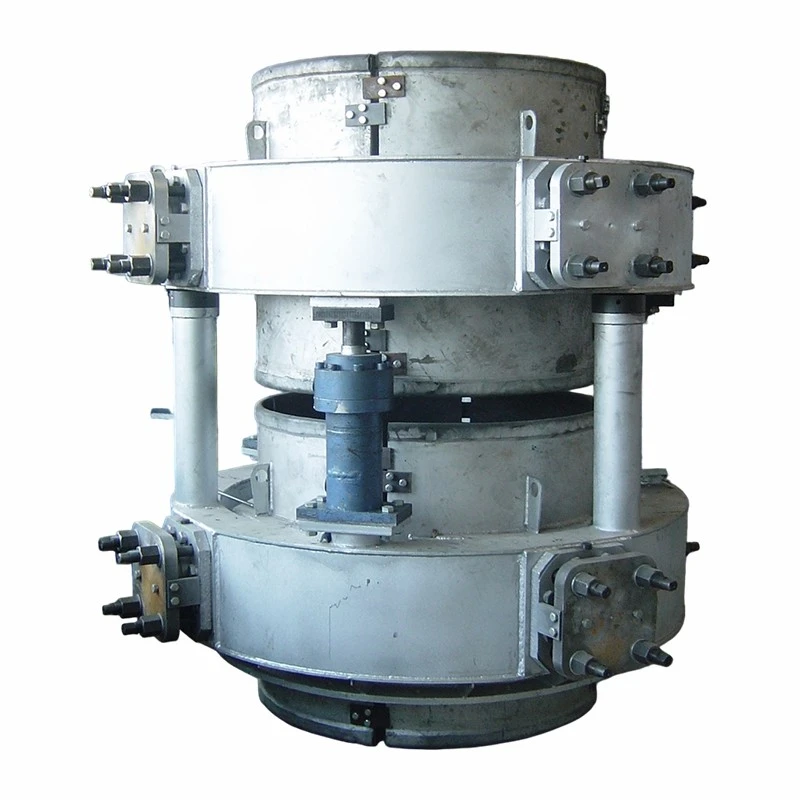

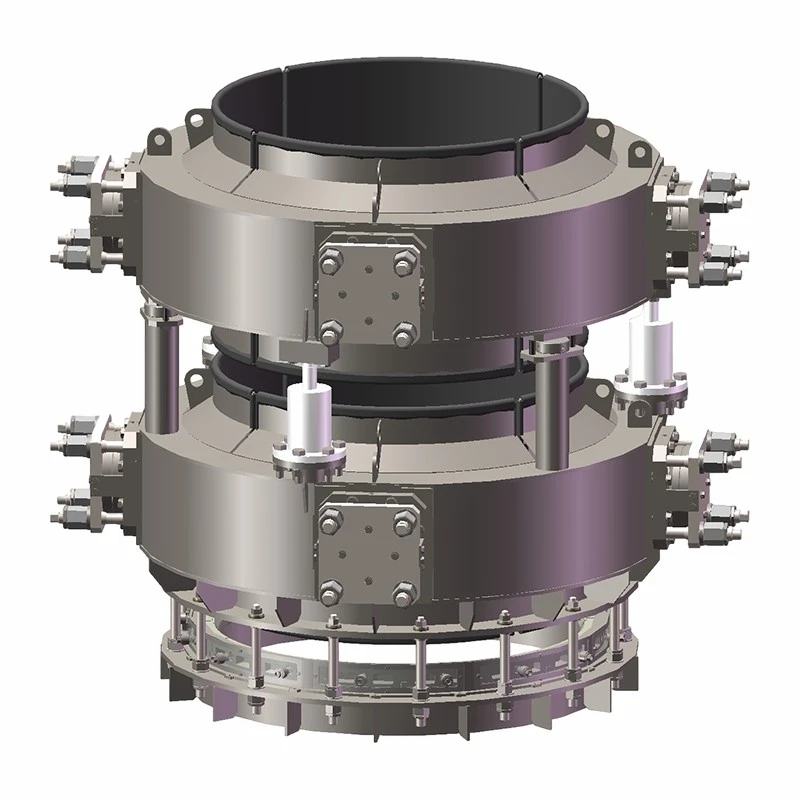

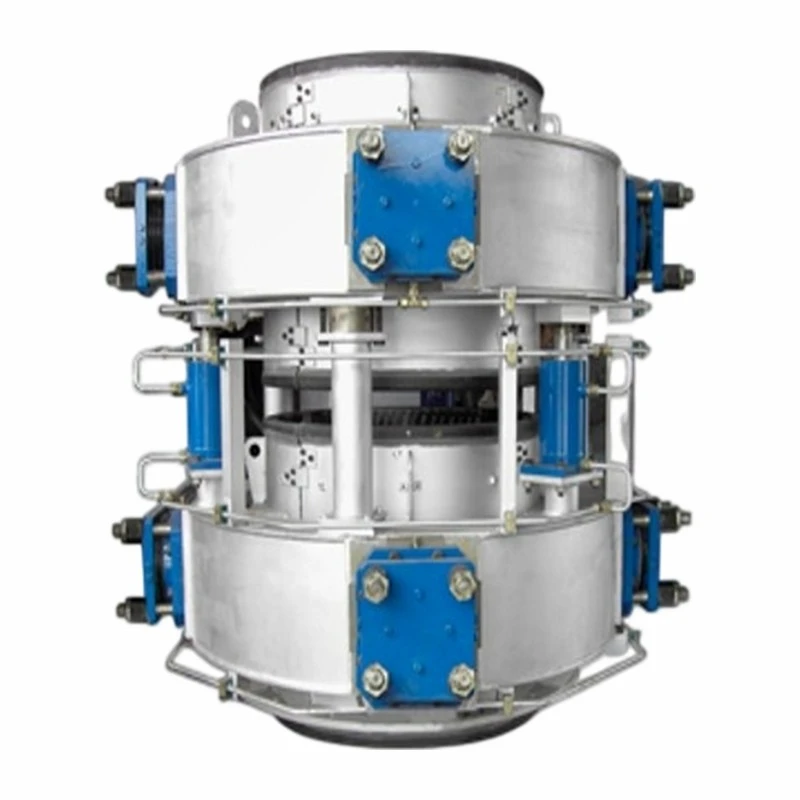

The electrode slipping system consists of upper and lower band type clamping brakes, slipping cylinders, and related components. The electrode slipping device adopts a hydraulic-mechanical double-brake ring clamping structure. When clamping the electrode, the holding force is provided by four (or six) sets of combined disc springs arranged radially around the brake ring, ensuring that the electrode will not slip even in the event of a hydraulic system failure.

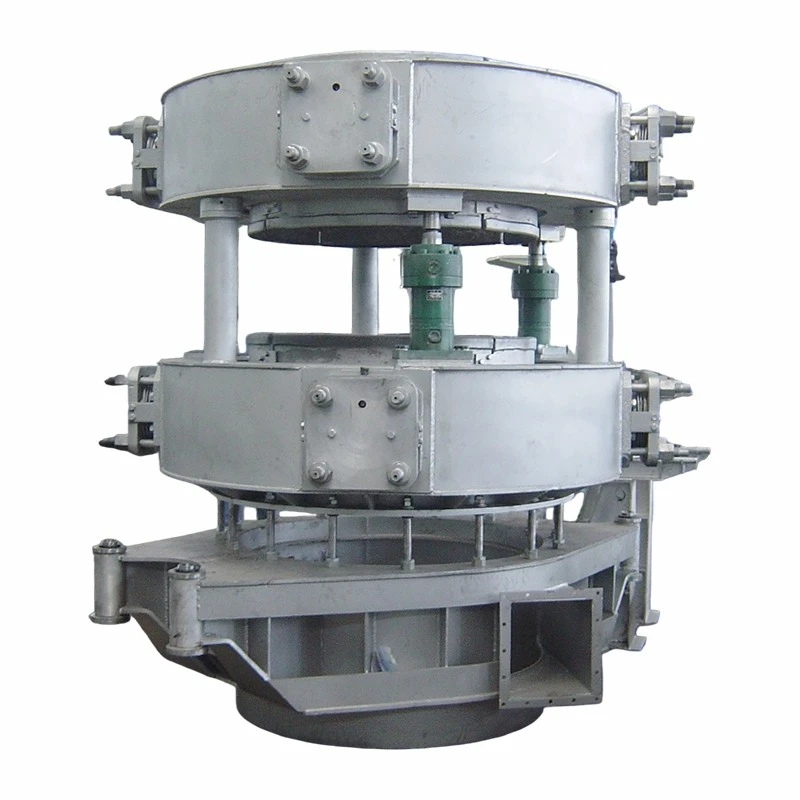

The electrode is released by using hydraulic pressure to overcome the spring force. Electrode slipping and lifting are achieved by three lifting cylinders installed between the upper and lower brake rings. When electrode lifting or slipping is required, the three lifting cylinders move the upper brake ring relative to the lower brake ring according to a predetermined operating sequence, thereby accomplishing the lifting or slipping of the electrode.
The maximum stroke of the slipping cylinders is 120mm, and the slipping length for each operation can be adjusted between 20mm and 100mm by changing the position of the limit blocks according to process requirements.
The electrode slipping system should be equipped with automatic control while also allowing manual operation. The lifting and slipping of the electrodes are controlled by a hydraulic power unit. The hydraulic power unit uses water-glycol hydraulic fluid as its working medium.
Features & Advantages
One-touch operation for electrode clamping, slipping, and retracting, reduces manual intervention, lowers electrode breakage and consumption rates, improves production efficiency.
Product Specifications
Non-standard equipment; equipment design and supply can be carried out according to customer requirements.
Optional Customization Items: design, material, size, etc.
Equipment design and supply can be carried out according to customer requirements.
Material
Hydraulic cylinders, clamping device, carbon steel platform.
Design
Equipment design and supply can be carried out according to customer requirements.
Quality Control
After completion of the design, fully automated laser cutting of raw materials, machining, assembly welding, pre-assembly, and multi-level production quality inspections are carried out.
A "7 Inspections and 1 Certificate" management system is adopted, including incoming raw material inspection, machined component inspection, welding process inspection, ultrasonic flaw detection inspection, pre-assembly inspection, pressure testing, and export packaging inspection. After completion of all inspections, a product qualification certificate is issued.
Certified in accordance with:
Quality Management System (CQC) GB/T19001-2016 / ISO9001:2015
Occupational Health and Safety Management System (CQC) GB/T45001-2020 / ISO45001:2008
Environmental Management System (CQC) GB/T24001-2016 / ISO14001:2015
EU CE Certification.
After-sales Service
1. Packaging, Logistics & Delivery
International Export Packaging Standards
2. Installation & Commissioning

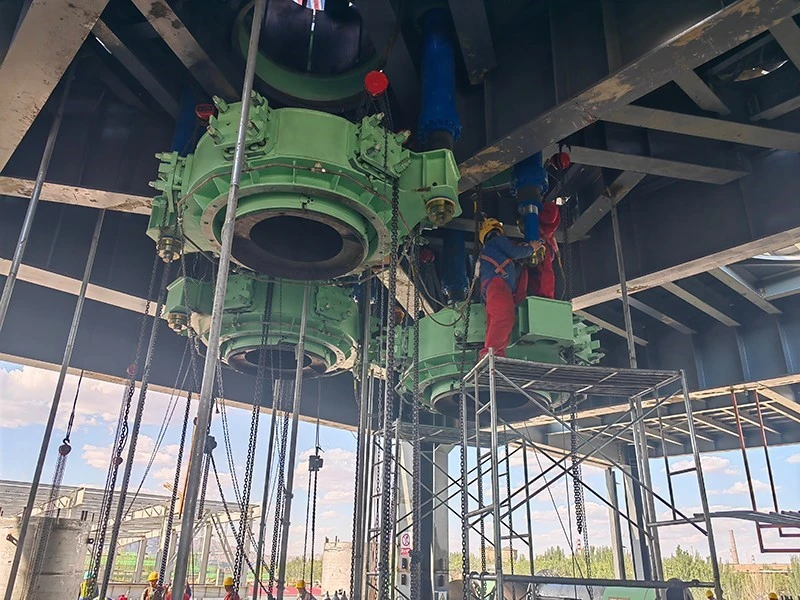

Technical installation personnel can be dispatched overseas for installation and adjustment, and on-site installation and commissioning guidance can also be provided.
3. Operation Training
Technical guidance and technical training services are available.
4. Maintenance & Repair
Long-term equipment maintenance and technical guidance are available.
5. Spare Parts Support
Long-term supply of equipment spare parts is available.
