Product Introduction
1. Product Description

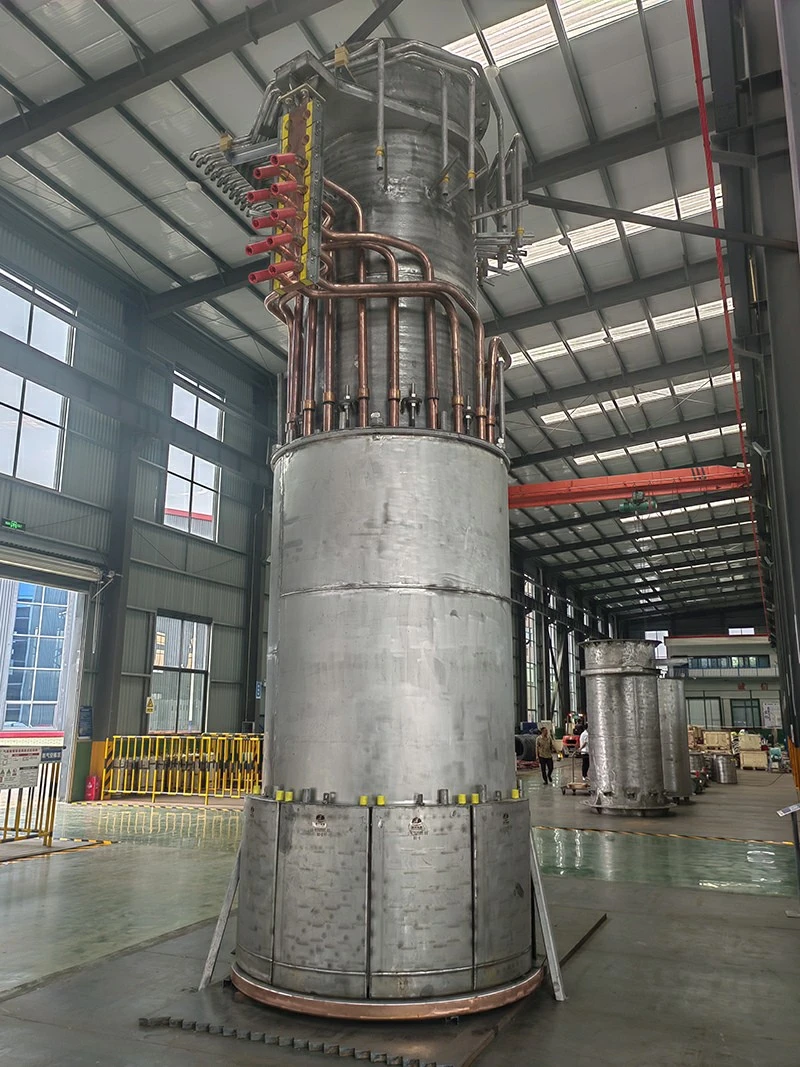

The electrode holding device adopts a bellows pressure-ring type electrode holder. The bellows pressure ring is fabricated from welded stainless steel plates and features a split-type structure with internal water cooling. The bellows expansion box is also constructed from welded stainless steel and is filled with water-glycol coolant, enabling pressure reduction during electrode slipping operations.
The assembly consists of mantle, pressure ring, copper contact shoes, conductive copper tubes, and upper and lower protective screens. The use of bellows expansion boxs allows each expansion box to apply radial pressure individually to its corresponding copper contact shoe, without being affected by electrode inclination or surface conditions. This ensures uniform pressure between the copper contact shoes and the electrode, minimizes current imbalance, and extends the service life of the copper contact shoes.
The electrode holder is one of the core components of a submerged arc furnace and is responsible for conducting electrical current to the electrode. The furnace adopts a bellows pressure-ring type electrode holder. The copper contact shoes are manufactured as integrated cup-type forged T2 copper components, with 10 contact shoes per phase. Each phase is equipped with 10 stainless steel lower protection shields (with U-shaped bottom sealing). The pressure ring is made of stainless steel, while the bottom ring is manufactured from T2 copper.
Features & Advantages
This design reduces maintenance requirements for copper contact shoes, significantly decreases furnace downtime, and thereby reduces power consumption while increasing production output.
Product Specifications
Non-standard equipment; equipment design and supply can be carried out according to customer requirements.
Optional Customization Items: design, material, size, etc.
Equipment design and supply can be carried out according to customer requirements.
Material
The protection shields and pressure ring are made of 06Cr18Ni11Ti stainless steel, while the copper contact shoes and bottom ring are made of T2 copper.

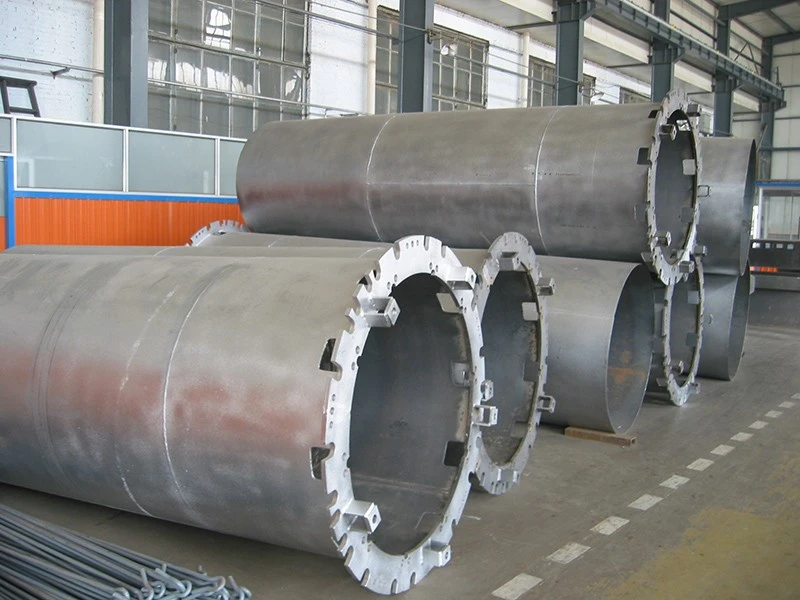

Appearance
The electrode holding device adopts a bellows pressure ring type holder, consisting of mantle, pressure ring, copper contact shoes, conductive copper tubes, and upper and lower protection shields.
Design
Equipment design and supply can be carried out according to customer requirements.
Quality Control
After completion of the design, fully automated laser cutting of raw materials, machining, assembly welding, pre-assembly, and multi-level production quality inspections are carried out.
A "7 Inspections and 1 Certificate" management system is adopted, including incoming raw material inspection, machined component inspection, welding process inspection, ultrasonic flaw detection inspection, pre-assembly inspection, pressure testing, and export packaging inspection. After completion of all inspections, a product qualification certificate is issued.
Certified in accordance with:
Quality Management System (CQC) GB/T19001-2016 / ISO9001:2015
Occupational Health and Safety Management System (CQC) GB/T45001-2020 / ISO45001:2008
Environmental Management System (CQC) GB/T24001-2016 / ISO14001:2015
EU CE Certification.
After-sales Service
1. Packaging, Logistics & Delivery
International Export Packaging Standards
2. Installation & Commissioning
Technical installation personnel can be dispatched overseas for installation and adjustment, and on-site installation and commissioning guidance can also be provided.
3. Operation Training
Technical guidance and technical training services are available.
4. Maintenance & Repair
Long-term equipment maintenance and technical guidance can be provided.
5. Spare Parts Support
Long-term supply of equipment spare parts is available.
