Product Introduction
1. Product Description
The submerged arc furnace burn-through system operates by supplying a high current to a carbon rod located at the front end of the burn-through machine. The high-temperature electric arc generated at the tip of the carbon rod burns through the furnace tap hole, allowing molten metal to flow smoothly out of the furnace. The burn-through system mainly consists of the burn-through machine, burn-through track, and burn-through busbars.

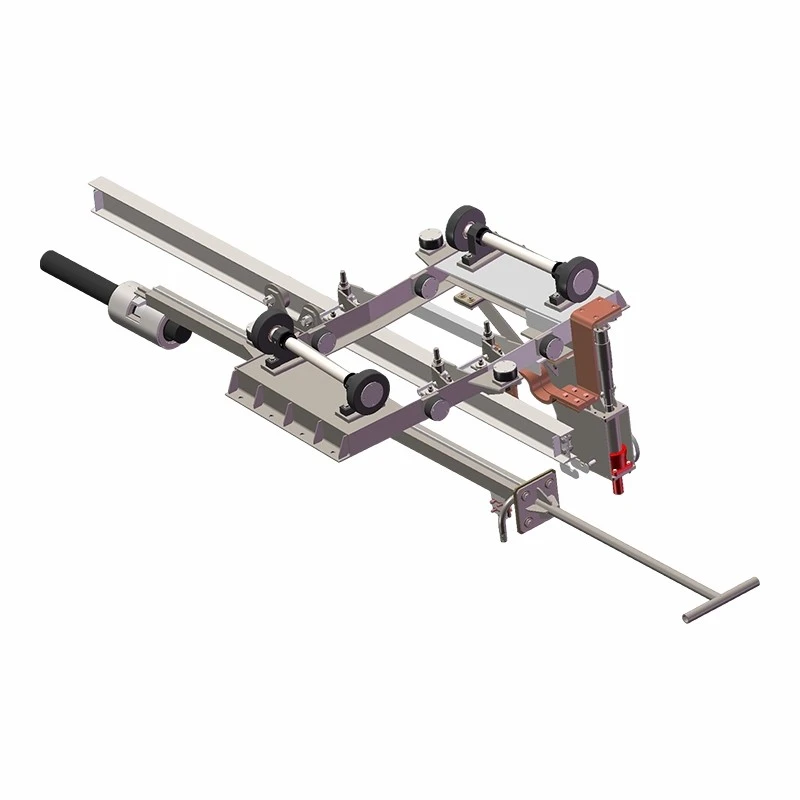

The burn-through machine mainly comprises a guide mechanism, burn-through unit, contactor, burn-through busbars, and a water-cooling system. During tapping, electrical power is supplied to the burn-through machine, energizing the carbon rod at its tip and generating an electric arc to open the tap hole.
The burn-through track mainly consists of the burn-through rail and circular burn-through busbar, serving as the operating track for the burn-through machine.
The burn-through busbar functions as a current conductor, transmitting electrical current to the burn-through machine, thereby energizing it and enabling the tap hole to be opened efficiently.
Features & Advantages
Easy carbon rod replacement, stable equipment operation, high level of safety, high burn-through efficiency.
Product Specifications
Non-standard equipment; equipment design and supply can be carried out according to customer requirements.
Optional Customization Items: design, material, size, etc.
Equipment design and supply can be carried out according to customer requirements.
Material
Burn-through busbar: T2 copper, steel structure: Q235 carbon structural steel,graphite carbon rod.
Appearance

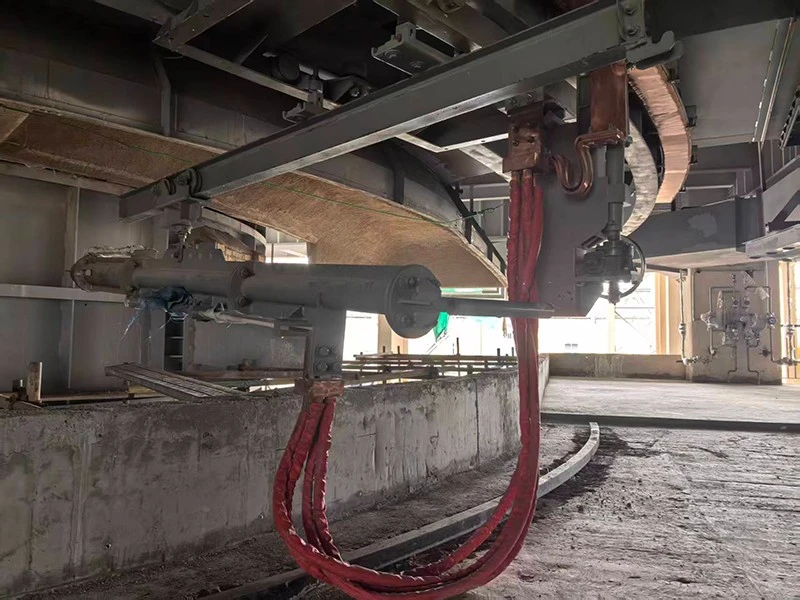

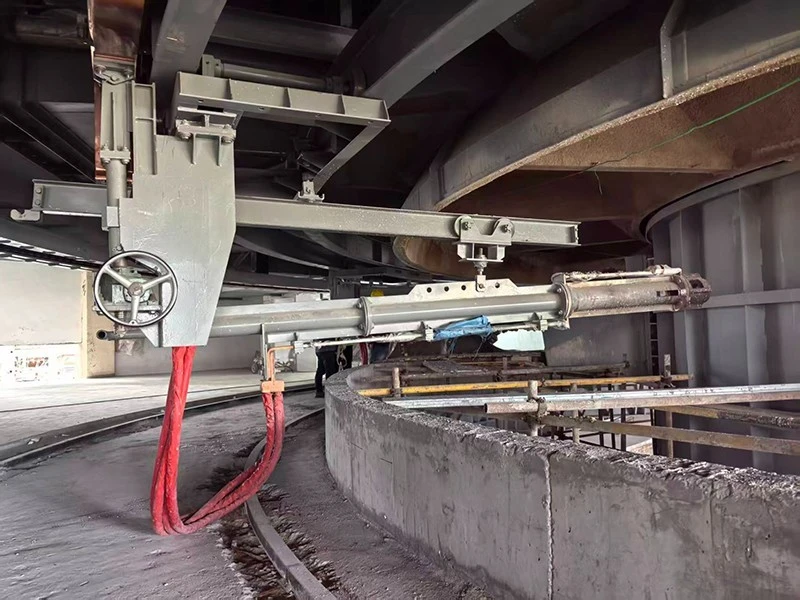

See photos.
Design
Equipment design and supply can be carried out according to customer requirements.
Quality Control
After the design is completed, the production process includes: fully automatic laser cutting of raw materials, machining, assembly and welding, pre-assembly, and multi-level production quality inspections.
A "7 inspections + 1 certification" quality management system is adopted, including: incoming raw material inspection, machined component inspection, welding process inspection, ultrasonic flaw detection, pre-assembly inspection, pressure testing, export packaging inspection. After completion of all inspections, a product quality certificate is issued.
Certified in accordance with:
Quality Management System: CQC GB/T19001-2016 / ISO9001:2015
Occupational Health and Safety Management System: CQC GB/T45001-2020 / ISO45001:2008
Environmental Management System: CQC GB/T24001-2016 / ISO14001:2015
EU CE Certification.
After-sales Service
1. Packaging, Logistics & Delivery
International Export Packaging Standards
2. Installation & Commissioning
Technical personnel can be dispatched overseas for installation and adjustment, or on-site installation and commissioning guidance can be provided.
3. Operation Training
Technical guidance and technical training services are available.
4. Maintenance & Repair
Long-term equipment maintenance and technical support can be provided.
5. Spare Parts Support
Long-term spare parts supply is available.
