Product Introduction
1. Product Description
A submerged arc furnace is an industrial electric furnace used for raw material smelting. The integrated "Mechanical-Electrical-Transformer-Compensation" equipment package for submerged arc furnaces includes: the furnace mechanical body, special transformer, electrical system, and power compensation device.

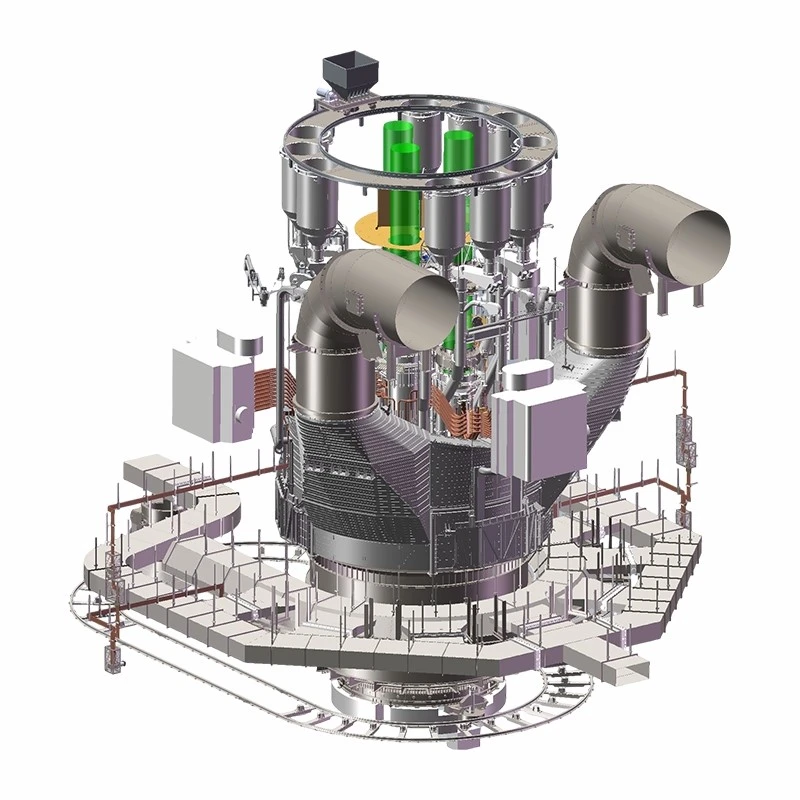

The mechanical body of the submerged arc furnace mainly consists of the furnace shell, fume hood, electrode system, feeding system, fume extraction system, water-cooling system, hydraulic system, and burn-through device, completing the processes of material feeding, reaction, and discharge. The electrical system includes automation control and low-voltage power distribution, integrated with the furnace mechanical body to effectively control production quality and efficiency while ensuring safe and stable operation.
The electrical parameters of the special transformer are reasonably matched with the geometric parameters of the submerged arc furnace, laying the foundation for excellent production performance of the complete equipment system. The compensation device improves the overall power quality of the system, reduces reactive power losses in the bus tube and transformer, and enhances the electrothermal efficiency of the submerged arc furnace system.
Our company's large semi-closed submerged arc furnace integrated "Mechanical-Electrical-Transformer-Compensation" equipment package adopts numerous innovative applications and advanced designs, including: static-pressure transition integrated exhaust hood, furnace front fixed integrated extraction system, circular material distribution system.
Comprehensive improvements and optimizations have been made to the protection screen, band type holding brake, furnace shell, furnace door, feed pipes, sealing system, gas tight system, and hydraulic system, etc. Material selection places greater emphasis on performance matching and product quality.
The new-generation integrated equipment package effectively overcomes the shortcomings and defects of traditional furnace designs, achieving significant energy-saving and efficiency-enhancing performance. It is the core upgraded product within our company's equipment portfolio.
Product Specifications
Non-standard equipment; equipment design and supply can be carried out according to customer requirements.
Optional Customization Items: design, material, size, etc.
Equipment design and supply can be carried out according to customer requirements.
Design
Equipment design and supply can be carried out according to customer requirements.
Quality Control
After completion of the design, fully automated laser cutting of raw materials, machining, assembly welding, pre-assembly, and multi-level production quality inspections are carried out.
A "7 Inspections and 1 Certificate" management system is adopted, including incoming raw material inspection, machined component inspection, welding process inspection, ultrasonic flaw detection inspection, pre-assembly inspection, pressure testing, and export packaging inspection. After completion of all inspections, a product qualification certificate is issued.
Certified in accordance with:
Quality Management System (CQC) GB/T19001-2016 / ISO9001:2015
Occupational Health and Safety Management System (CQC) GB/T45001-2020 / ISO45001:2008
Environmental Management System (CQC) GB/T24001-2016 / ISO14001:2015
EU CE Certification.
After-sales Service
1. Packaging, Logistics & Delivery
International Export Packaging Standards
2. Installation & Commissioning
Technical installation personnel can be dispatched overseas for installation and adjustment, and on-site installation and commissioning guidance can also be provided.
3. Operation Training
Technical guidance and technical training services are available.
4. Maintenance & Repair
Long-term equipment maintenance and technical guidance can be provided.
5. Spare Parts Support
Long-term supply of equipment spare parts is available.
