Product Introduction
1. Product Description

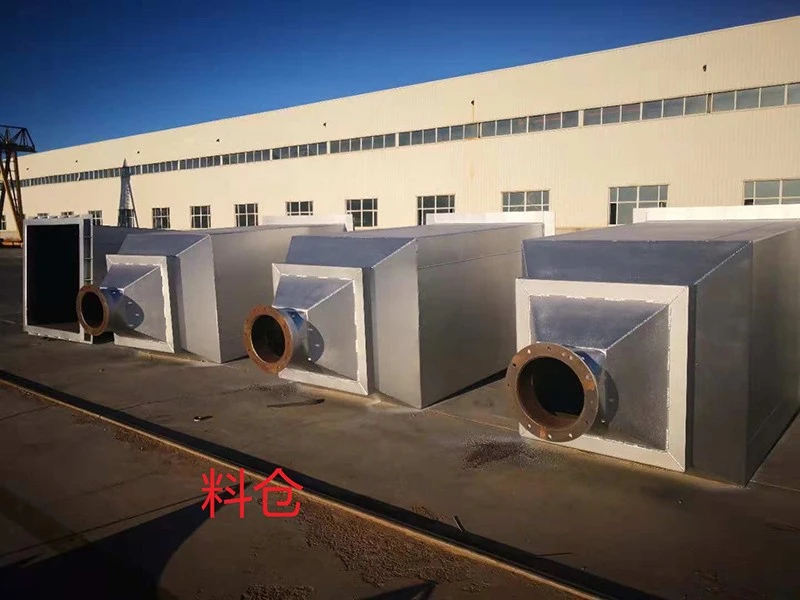

Submerged arc furnace charging bins and weighing hoppers are core material storage and feeding equipment in ferroalloy smelting operations:

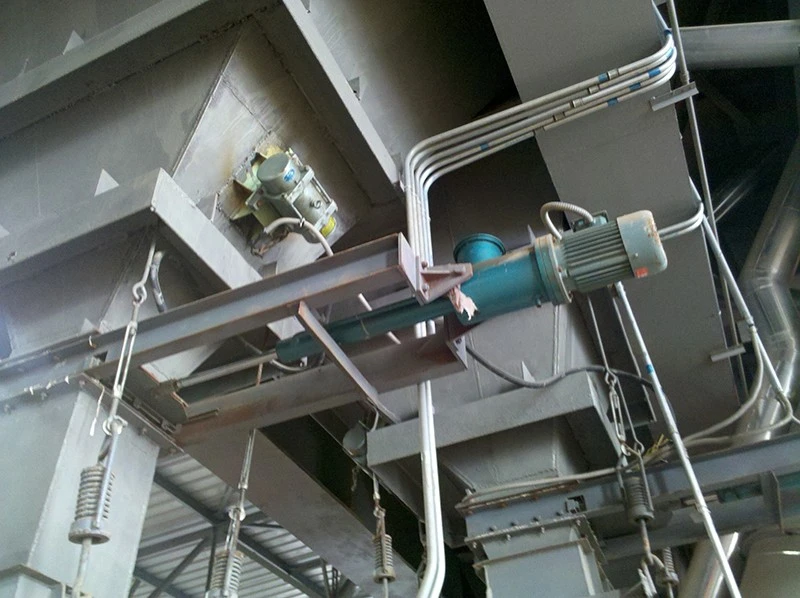

1) Raw material warehouse silos, day bins, and furnace top bins are used to store different types of raw materials. Depending on the alloy type and process requirements, their shape, dimensions, capacity, and wall thickness are designed accordingly. The interior is lined with wear-resistant steel plates, while the upper section is equipped with grizzly screens and the lower section with slide gate valves, vibrating feeders, and other discharge equipment.
2) Batching station hoppers and receiving hoppers of finished-product packaging machines provide both storage and weighing functions. Their process design and configuration vary according to the type of raw materials handled.
To address the problem of long-term wear caused by continuous material impact and abrasion at the discharge outlets of bins and hoppers, wear-resistant liners are installed inside. These liners help reduce impact forces and noise while extending the service life of the bins and hoppers.
Features & Advantages
Accurate weighing and batching, uniform material discharge, high wear resistance, noise reduction, extended service life.
Product Specifications
Non-standard equipment; equipment design and supply can be carried out according to customer requirements.
Optional Customization Items: design, material, size, etc.
Equipment design and supply can be carried out according to customer requirements.
Material
Carbon steel, wear-resistant steel.
Design
Equipment design and supply can be carried out according to customer requirements.
Quality Control
After the design is completed, the production process includes: fully automatic laser cutting of raw materials, machining, assembly and welding, pre-assembly, and multi-level production quality inspections.
A "7 inspections + 1 certification" quality management system is adopted, including: incoming raw material inspection, machined component inspection, welding process inspection, ultrasonic flaw detection, pre-assembly inspection, pressure testing, export packaging inspection. After completion of all inspections, a product quality certificate is issued.
Certified in accordance with:
Quality Management System: CQC GB/T19001-2016 / ISO9001:2015
Occupational Health and Safety Management System: CQC GB/T45001-2020 / ISO45001:2008
Environmental Management System: CQC GB/T24001-2016 / ISO14001:2015
EU CE Certification.
After-sales Service
1. Packaging, Logistics & Delivery
International Export Packaging Standards
2. Installation & Commissioning
Technical personnel can be dispatched overseas for installation and adjustment, or on-site installation and commissioning guidance can be provided.
3. Operation Training
Technical guidance and technical training services are available.
4. Maintenance & Repair
Long-term equipment maintenance and technical guidance are available.
5. Spare Parts Support
Long-term supply of equipment spare parts is available.
