Product Introduction
1. Product Description

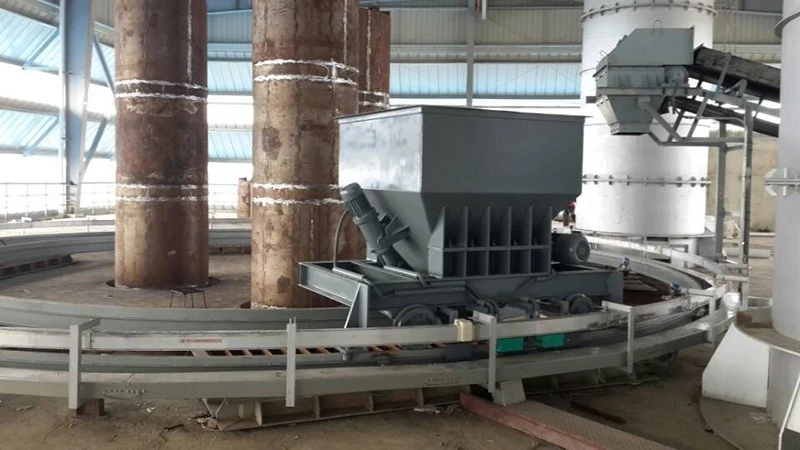

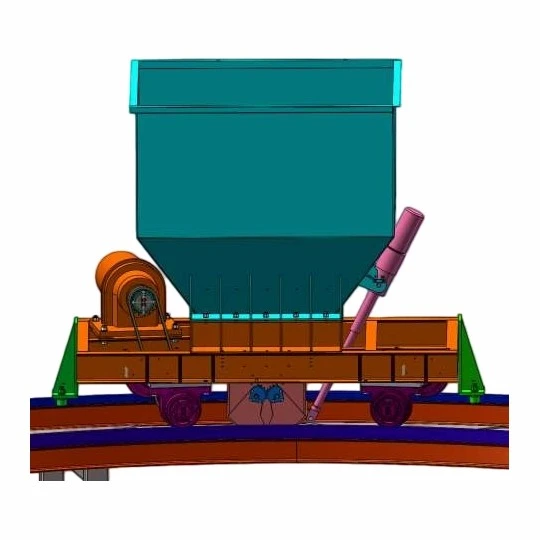

The circular distribution trolley is a dedicated material distribution unit used in the automatic charging system of a submerged arc furnace. It is installed at the top of the furnace and consists of a bin, drive system, distribution mechanism, material level sensors, and a circular rail. The distribution car is equipped with a vibrating device and an electro-hydraulic brake system. A material retaining plate and a pushing plate are installed at the hopper discharge outlet. The pushing plate is actuated by a hydraulic distribution cylinder to automatically distribute the material to the furnace top bins, enabling precise and uniform material distribution without dead zones.
Features & Advantages
High degree of automation, stable operation, low maintenance requirements, high operating efficiency, capable of continuous material feeding.
Product Specifications
Non-standard equipment; equipment design and supply can be carried out according to customer requirements.
Optional Customization Items: design, material, size, etc.
Equipment design and supply can be carried out according to customer requirements.
Material
Material: Carbon Steel.
Appearance
The charging system consists of hoppers, feed pipes, hydraulic slide gate valves, volumetric hoppers, and level sensors.
Design
Equipment design and supply can be carried out according to customer requirements.
Quality Control
After the design is completed, the production process includes: fully automatic laser cutting of raw materials, machining, assembly and welding, pre-assembly, and multi-level production quality inspections.
A "7 inspections + 1 certification" quality management system is adopted, including: incoming raw material inspection, machined component inspection, welding process inspection, ultrasonic flaw detection, pre-assembly inspection, pressure testing, export packaging inspection. After completion of all inspections, a product quality certificate is issued.
Certified in accordance with:
Quality Management System: CQC GB/T19001-2016 / ISO9001:2015
Occupational Health and Safety Management System: CQC GB/T45001-2020 / ISO45001:2008
Environmental Management System: CQC GB/T24001-2016 / ISO14001:2015
EU CE Certification.
After-sales Service
1. Packaging, Logistics & Delivery
International Export Packaging Standards
2. Installation & Commissioning
Technical personnel can be dispatched overseas for installation and adjustment, or on-site installation and commissioning guidance can be provided.
3. Operation Training
Technical guidance and technical training services are available.
4. Maintenance & Repair
Long-term equipment maintenance and technical support can be provided.
5. Spare Parts Support
Long-term spare parts supply is available.
